Beschreibung
Aggregatinformationen |
||
|---|---|---|
| Volt | 12 | |
| Familientyp | 5SE09C | |
Physische Informationen |
||
|---|---|---|

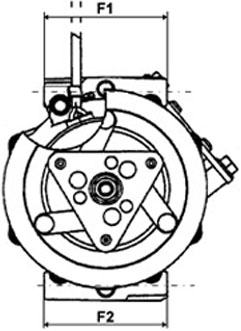

| F | Dist. between holes 1 | 60.00 |
| F | Dist. between holes 2 | 60.00 |
| G1 | Dist. between mount. bracket/hole | 78.00 |
| G2 | Dist. between mount. bracket/hole 2 | 90.00 |
| L | Position | 50 |
| M | Position 2 | 55 |
| C | Länge mm | 217.00 |
| L | Inlet | 18.30 |
| M | Outlet | 15.50 |
Riemenscheibeninformationen |
||
|---|---|---|
| B1 | Pulley Dist. B1 | 80.00 |
| B2 | Pulley Dist. B2 | 62.00 |
| Riemens. Spuren | 6 | |
| Riemenscheibentyp | Keilrippenriemenscheibe | |
| A | Pulley OD mm | 100.00 |
Verschiedene Informationen |
||
|---|---|---|
| Öltyp | PAG 46 | |
| Ölmenge | 110 ml. | |
| Refrigerant | R134a | |
| O-Ring | w/o | |
Kataloginformationen |
||
|---|---|---|
| Bemerkungen 2 | WICHTIG! Ölbefüllung. 1. Lassen Sie das Öl aus dem Kompressor und messen Sie die Ölmenge. 2. Befüllen Sie den Kompressor mit der zusätzlichen Ölmenge und dem entsprechenden Öltyp, wie vom Fahrzeughersteller angegeben. Bitte achten Sie darauf, dass Sie nicht verschiedene Öltypen mischen. | |
Ersatz |
||
|---|---|---|
| 240969 | Cargo | |
| 32736 | NRF | |
| 32736G | NRF | |
| 351125201 | Hella | |
| 351125701 | Hella | |
| 4471500350 | Denso | |
| 4471501140 | Denso | |
| 4471501640 | Denso | |
| 4471504550 | Denso | |
| 4471905220 | Denso | |
| 4471905221 | Denso | |
| 4471905222 | Denso | |
| 4471905223 | Denso | |
| 4471905224 | Denso | |
| 4471909144 | Denso | |
| 4471909780 | Denso | |
| 4472202333 | Denso | |
| 4472209736 | Denso | |
| 4472209737 | Denso | |
| 4472209738 | Toyota | |
| 447220-9739 | Denso | |
| 4472601504 | Denso | |
| 4472601505 | Denso | |
| 447260-1780 | Denso | |
| 4472602180 | Denso | |
| 447260-2330 | Denso | |
| 4472603310 | Denso | |
| 4472603311 | Denso | |
| 4472603312 | Denso | |
| 4472603313 | Denso | |
| 4472603321 | Denso | |
| 8831002390 | Toyota | |
| 883100D200 | Toyota | |
| 88310-0D200 | Toyota | |
| 883100D201 | Toyota | |
| 88310-0D201 | Toyota | |
| 883100D202 | Toyota | |
| 88310-0D202 | Toyota | |
| 883100D230 | Toyota | |
| 88310-0D230 | Toyota | |
| 883100D231 | Toyota | |
| 88310-0D231 | Toyota | |
| 883100D232 | Toyota | |
| 88310-0D232 | Toyota | |
| 883100D320 | Toyota | |
| 88310-0D320 | Toyota | |
| 883100D330 | Toyota | |
| 88310-0D330 | Toyota | |
| 88310-1A680 | Toyota | |
| 88310-1A800 | Toyota | |
| 88310-1A820 | Toyota | |
| 88310-52492 | Toyota | |
| 8831052590 | Toyota | |
| 8831052591 | Toyota | |
| 8831052592 | Toyota | |
| 88310-52592 | Toyota | |
| 8FK351125201 | Hella | |
| 8FK351125701 | Hella | |
| ACP621 | lucas | |
| ACP806 | lucas | |
| DCP50240 | Denso | |
| DCP50246 | Denso | |
| DCP50300 | Denso | |
| DCP50304 | Denso | |
| DCP50305 | Denso | |
