Beschreibung
Aggregatinformationen |
||
|---|---|---|
| Volt | 12 | |
| Familientyp | 7SEU16C | |
Physische Informationen |
||
|---|---|---|

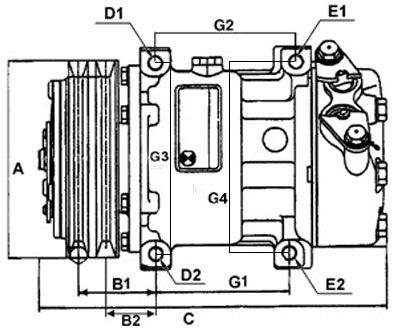

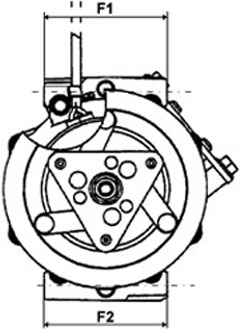

| F | Dist. between holes 1 | 70.00 |
| F | Dist. between holes 2 | 70.00 |
| G1 | Dist. between mount. bracket/hole | 141.00 |
| G2 | Dist. between mount. bracket/hole 2 | 141.00 |
| L | Position | 55 |
| M | Position 2 | 50 |
| C | Länge mm | 226.00 |
| L | Inlet | 28.40 |
| M | Outlet | 15.30 |
Riemenscheibeninformationen |
||
|---|---|---|
| B1 | Pulley Dist. B1 | 59.00 |
| B2 | Pulley Dist. B2 | 41.50 |
| Riemens. Spuren | 6 | |
| Riemenscheibentyp | Keilrippenriemenscheibe | |
| A | Pulley OD mm | 110.00 |
Verschiedene Informationen |
||
|---|---|---|
| Öltyp | PAG 46 | |
| Ölmenge | 160 ml. | |
| Refrigerant | R134a | |
| O-Ring | Mit | |
Ersatz |
||
|---|---|---|
| 01140562 | Delphi | Stückliste |
| 01141228 | Delphi | |
| 012011032014 | Audi see VW | |
| 100199 | Delphi | |
| 1140562 | Delphi | Stückliste |
| 1141228 | Delphi | |
| 12011032014 | Audi see VW | |
| 1471004770 | Volkswagen | |
| 1601 | Sanden | |
| 1615 | Sanden | |
| 1620 | Sanden | |
| 1701 | Sanden | |
| 1702 | Sanden | |
| 1703 | Sanden | |
| 1706 | Sanden | |
| 1707 | Sanden | |
| 1711 | Sanden | |
| 1721 | Sanden | |
| 1722 | Sanden | |
| 1782 | Sanden | |
| 1K0260859F | Audi see VW | |
| 1K0802803L | Volkswagen | |
| 1K0820803A | Volkswagen | |
| 1K0820803A | Audi see VW | |
| 1K0820803G | Volkswagen | Stückliste |
| 1K0820803H | Volkswagen | Stückliste |
| 1K0820803J | Volkswagen | Stückliste |
| 1K0820803K | Seat se VW | |
| 1K0820803L | Volkswagen | Stückliste |
| 1K0820803NX | Volkswagen | Stückliste |
| 1K0820803P | Volkswagen | Stückliste |
| 1K0820803Q | Volkswagen | Stückliste |
| 1K0820803QX | Volkswagen | |
| 1K0820803S | Volkswagen | Stückliste |
| 1K0820803SX | Volkswagen | Stückliste |
| 1K0820803T | Volkswagen | Stückliste |
| 1K0820808AX | Seat se VW | |
| 1K0820808B | Volkswagen | Stückliste |
| 1K0820808BX | Audi see VW | |
| 1K0820808BX | Volkswagen | |
| 1K0820808D | Audi see VW | |
| 1K0820808D | Volkswagen | Stückliste |
| 1K0820808DX | Seat se VW | |
| 1K0820808F | Volkswagen | Stückliste |
| 1K0820808FX | Volkswagen | |
| 1K0820812B | Volkswagen | |
| 1K0820859 | Volkswagen | Stückliste |
| 1K0820859B | Audi see VW | |
| 1K0820859C | Volkswagen | Stückliste |
| 1K0820859D | Volkswagen | Stückliste |
| 1K0820859E | Audi see VW | |
| 1K0820859E | Volkswagen | Stückliste |
| 1K0820859F | Volkswagen | Stückliste |
| 1K0820859M | Volkswagen | Stückliste |
| 1K0820859Q | Volkswagen | Stückliste |
| 1K0820859QX | Volkswagen | Stückliste |
| 1K0820859S | Volkswagen | Stückliste |
| 1K0820859SX | Audi see VW | |
| 1K0820859SX | Volkswagen | |
| 1K0820859TX | Audi see VW | |
| 1KD820803 | Seat se VW | |
| 1KD820803A | Volkswagen | |
| 1KD820803B | Audi see VW | |
| 1KD820803H | Audi see VW | |
| 1KD820803K | Volkswagen | |
| 1KD820803L | Audi see VW | |
| 1KD820803M | Audi see VW | |
| 240741 | HC-Cargo | |
| 2483000270 | Denso | |
| 2483000390 | Denso | |
| 2483000450 | Denso | |
| 2483000800 | Denso | |
| 2483001150 | Denso | |
| 2483002850 | Denso | |
| 2E0820803A | Volkswagen | |
| 2E0820803B | Volkswagen | |
| 2E0820803C | Volkswagen | |
| 2E0820803D | Volkswagen | |
| 32146G | NRF | |
| 32147 | NRF | |
| 32500 | NRF | |
| 32500G | NRF | |
| 351105231 | Hella | |
| 351316141 | Hella | |
| 351316461 | Hella | |
| 351316641 | Hella | |
| 351316961 | Hella | |
| 351322011 | Hella | |
| 351322741 | Hella | |
| 38450 | NRF | |
| 4371005410 | Denso | |
| 4371005640 | Denso | |
| 4371006960 | Denso | |
| 4471500660 | Denso | |
| 4471500661 | Denso | |
| 4471500662 | Denso | |
| 4471500663 | Denso | |
| 4471500664 | Denso | |
| 4471500780 | Denso | |
| 4471500783 | Denso | |
| 4471501937 | Denso | |
| 4471502350 | Denso | |
| 4471502351 | Denso | |
| 4471502353 | Denso | |
| 4471502355 | Denso | |
| 4471502870 | Denso | |
| 4471503650 | Audi see VW | |
| 4471503651 | Denso | |
| 4471503652 | Denso | |
| 4471503653 | Denso | |
| 4471503654 | Denso | |
| 4471503655 | Denso | |
| 4471503658 | Denso | |
| 4471504201 | Denso | |
| 4471504202 | Denso | |
| 4471504205 | Denso | |
| 4471505460 | Denso | |
| 4471600260 | Denso | |
| 4471804340 | Denso | |
| 447180-4341 | Denso | Stückliste |
| 4471804342 | Audi see VW | |
| 447180-4343 | Denso | Stückliste |
| 447180-4344 | Denso | Stückliste |
| 4471804345 | Denso | |
| 4471804346 | Audi see VW | |
| 447180-4347 | Denso | Stückliste |
| 4471805530 | Seat se VW | |
| 4471805530 | Audi see VW | |
| 4471805531 | Denso | |
| 447180-5532 | Denso | Stückliste |
| 447180-5533 | Denso | Stückliste |
| 4471806390 | Denso | |
| 4471806532 | Denso | |
| 4471807700 | Denso | |
| 4471807702 | Denso | |
| 447180-9490 | Denso | Stückliste |
| 447180-9492 | Denso | |
| 4471902380 | Denso | |
| 4471902382 | Denso | |
| 4471902383 | Denso | |
| 4471903650 | Denso | |
| 4471904650 | Denso | |
| 4471904651 | Denso | |
| 4471904652 | Denso | |
| 4471907950 | Denso | |
| 447190-7950 | Denso | Stückliste |
| 4471907951 | Denso | |
| 447190-7952 | Denso | Stückliste |
| 4471907953 | Denso | |
| 447190-7954 | Denso | Stückliste |
| 447190-7955 | Denso | Stückliste |
| 4471907956 | Denso | |
| 4471907957 | Denso | |
| 4471907958 | Denso | |
| 4471907959 | Denso | |
| 4471908710 | Denso | |
| 4471908714 | Denso | |
| 4471908720 | Denso | |
| 4471909200 | Denso | |
| 4471909205 | Denso | |
| 4471909280 | Denso | |
| 4471909281 | Denso | |
| 4471909282 | Denso | |
| 4471909283 | Denso | |
| 4471909284 | Denso | |
| 4471909285 | Denso | |
| 4471909298 | Denso | |
| 4471909570 | Denso | |
| 4471909576 | Denso | |
| 4471909577 | Denso | |
| 4472202880 | Denso | |
| 4472209200 | Denso | |
| 447220-9201 | Denso | Stückliste |
| 447220-9203 | Denso | Stückliste |
| 4472209350 | Denso | |
| 4472209351 | Denso | |
| 447220-9352 | Denso | Stückliste |
| 447220-9353 | Denso | Stückliste |
| 4472209470 | Denso | |
| 4472209802 | Denso | |
| 4472600800 | Denso | |
| 447260-1700 | Denso | |
| 4472602490 | Denso | |
| 4472602540 | Denso | |
| 4472603500 | Denso | |
| 4472609090 | Denso | |
| 4F0260805AJ | Volkswagen | |
| 4F0260805D | Audi see VW | |
| 506011-0760 | Zexel | Stückliste |
| 5060410001 | Valeo | |
| 506041-0001 | Zexel | Stückliste |
| 506041-0270 | Zexel | Stückliste |
| 506041-0760 | Zexel | Stückliste |
| 5147100171 | Delphi | |
| 5147100477 | Denso | |
| 5C0820803A | Volkswagen | |
| 5C0820803B | Volkswagen | |
| 5C0820803C | Volkswagen | |
| 5C0820803G | Volkswagen | |
| 5K0820803A | Volkswagen | |
| 5K0820803B | Volkswagen | |
| 5K0820803CX | Audi see VW | |
| 5K0820803D | Volkswagen | |
| 5K0820803EX | Seat se VW | |
| 5K0820803GX | Volkswagen | |
| 5K0820803JX | Volkswagen | |
| 5K0820803X | Volkswagen | |
| 5N0820803A | Volkswagen | Stückliste |
| 5N0820803F | Volkswagen | |
| 5N0820803HX | Seat se VW | |
| 5N0820803X | Volkswagen | |
| 5Q0820803 | Volkswagen | |
| 5Q0820803 | Audi see VW | |
| 5Q0820803A | Audi see VW | |
| 5Q0820803B | Volkswagen | |
| 5Q0820803C | Volkswagen | |
| 5Q0820803D | Volkswagen | |
| 5Q0820803E | Volkswagen | |
| 5Q0820803F | Volkswagen | |
| 5QD820803A | Audi see VW | |
| 5QD820803B | Volkswagen | |
| 5QD820803C | Seat se VW | |
| 6003K029 | schlieckmann | |
| 6003K270 | schlieckmann | |
| 6058K220 | schlieckmann | |
| 6058K266 | schlieckmann | |
| 6058K298 | schlieckmann | |
| 6058K302 | schlieckmann | |
| 699350 | Valeo | |
| 699357 | Valeo | |
| 699382 | Valeo | |
| 699857 | Valeo | |
| 6QD820803 | Volkswagen | |
| 7403344 | Hella | |
| 813143 | Valeo | |
| 8675 | Sanden | |
| 8675E | Sanden | |
| 8676 | Sanden | |
| 8680 | Sanden | |
| 8680F | Sanden | |
| 8681 | Sanden | |
| 8E0260805AS | Volkswagen | Stückliste |
| 8FK351105161 | Hella | |
| 8FK351105211 | Hella | |
| 8FK351105231 | Hella | |
| 8FK351105711 | Hella | |
| 8FK351110821 | Hella | |
| 8FK351316141 | Hella | |
| 8FK351316-141 | Hella | Stückliste |
| 8FK351316461 | Hella | |
| 8FK351316851 | Hella | |
| 8FK351322741 | Hella | |
| 8K0820808F | Seat se VW | |
| 920210 | kager | |
| 920271 | kager | |
| 920454 | kager | |
| 945620 | Geri | |
| 945679 | Geri | |
| 945693 | Geri | |
| 945762 | Geri | |
| 945831 | Geri | |
| ACP222 | lucas | |
| ACP634 | lucas | |
| ACP670 | lucas | |
| C699357V | Valeo | |
| DAC8629703 | Remy (delco) | |
| DAC8629704 | Remy (delco) | |
| DAC8629705 | Remy (delco) | |
| DCP02003 | Denso | |
| DCP32010 | Denso | |
| DCP32056 | Denso | |
| DCP32060 | Denso | |
| F699357Q | Valeo | |
| HVW9062300111 | Denso | |
| PXE14-1601 | Sanden | |
| PXE14-1701 | Sanden | |
| PXE141702 | Sanden | |
| PXE141703 | Sanden | |
| PXE141706 | Sanden | |
| PXE141707 | Sanden | |
| PXE141721 | Sanden | |
| PXE141722 | Sanden | |
| PXE141782 | Sanden | |
| PXE161601 | Sanden | |
| PXE161601E | Sanden | |
| PXE16-1601P | Sanden | Stückliste |
| PXE161610 | Sanden | |
| PXE161615 | Sanden | |
| PXE161615A | Sanden | |
| PXE161615P | Sanden | |
| PXE161617 | Sanden | |
| PXE161617A | Sanden | |
| PXE161620 | Sanden | |
| PXE16-1711 | Sanden | |
| PXE164573 | Sanden | |
| PXE16-8575F | Sanden | Stückliste |
| PXE16-8676F | Sanden | Stückliste |
| PXE16-8680 | Sanden | Stückliste |
| PXE16-8680F | Sanden | Stückliste |
| PXE16-8680P | Sanden | Stückliste |
| PXE16-8681 | Sanden | Stückliste |
| PXE168681F | Sanden | |
| PXE16-8681P | Sanden | Stückliste |
| PXE16U4569 | Delphi | |
| PXE16U4573 | Delphi | |
| PXE16U8675A | Delphi | |
| PXE16U8676A | Sanden | |
| PXE8675 | Sanden | |
| PXE8676 | Sanden | |
| PXE8680 | Sanden | |
| PXE8681 | Sanden | |
| PXV161601 | Sanden | |
| PXV161615 | Sanden | |
| PXV168675 | Sanden | |
| PXV168676 | Sanden | |
| PXV168680 | Sanden | |
| PXV168681 | Sanden | |
| T83849BA | Valeo | |
| TSP0155997 | Delphi | |
| TSP0156103M | Delphi | |
| TSP0156160M | Delphi | |
| W01K0820859F | Seat se VW | |
| Z0018376 | Valeo | |
| Z0018376A | Valeo | |
| Z0018376C | Valeo | |
| Z0018736 | Valeo | |
